The large area scan camera is the high-end series of iRAYPLE area scan cameras that offer resolutions ranging from 5 MP to 604 MP and are designed to provide high resolution, high frame rate, and high image quality. An excellent ISP algorithm is utilized to ensure optimal image effects. Some models also have TEC cooling capabilities, which help maintain a stable temperature for the sensor. This makes them well-suited for industries such as EV, photovoltaic, semiconductor, liquid crystal, and more.
AX7A20MT250E
Categories: Large Area Scan Series
Description
Product Details
● 10GigE interface, provides up to 10Gbps effective bandwidth;
● Patented flatness adjustment scheme to prevent partial defocusing;
● Excellent heat dissipation design, precise temperature control and constant temperature maintenance;
● 1GB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run mode;
● Support user-defined ROI, horizontal mirror and vertical mirror;
● Support ISP functions including Auto Exposure/Auto Gain/Auto BlackLevel/Gamma Correction/LUT etc.;
● mono cameras support automatic contrast;
● Support for FFC function to provide more uniform picture quality;
● Support mutil-frame average function, up to 4 frames averaging;
● Support fan speed adaptive function for setting the target temperature of the sensor;
● Support DC 24V power supply;
● Conform to GigE Vision protocol and GenICam standard;
● Conform to CE, FCC, KC, RoHS;

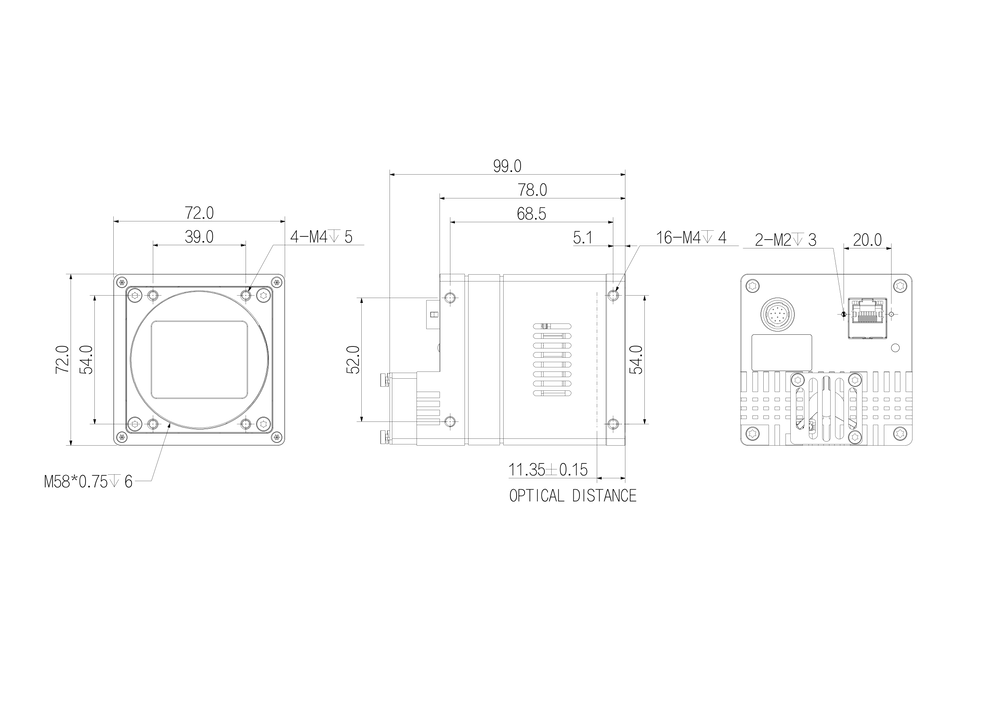

Dimensions
