The resolution of iRAYPLE A series area scan camera ranges from 0.3MP to 25MP. It is compatible with GigEVision, USB3.0, and CameraLink protocols, as well as the Gencam standard. Equipped with powerful and rich ISP algorithms, it supports features such as gamma correction, noise reduction, sharpening, and SPC correction, enhancing the image quality significantly. This camera is suitable for use in industries such as EV battery, 3C, semiconductor, pharmaceutical, and others.
A3138MU000E
Categories: A Series
Description
Product Details
● USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
● Compact size of 29mmx29mmx29mm;
● 128MB on-board cache for data transmission or image resend;
● Support Software Trigger/Hardware Trigger/Free Run Mode;
● Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness etc.;
● Support multiple image data formats output/ ROI/Binning/Mirror, etc.；
● Compatible with USB3.0 Vision protocol and GenICam standard;
● Comform to CE, FCC, RoHS;

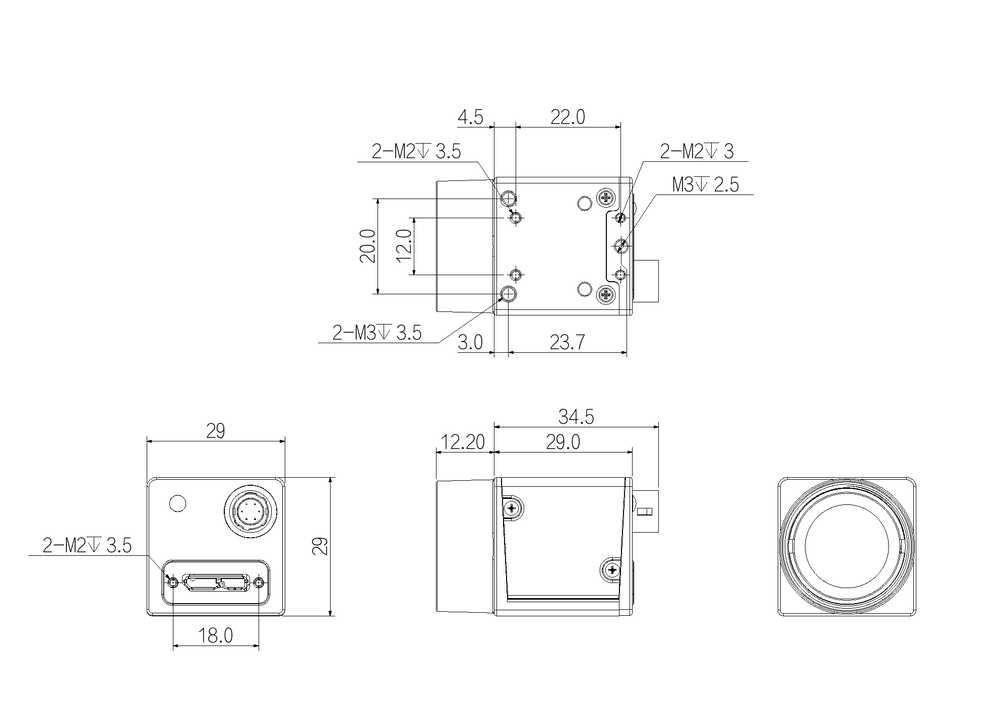

Dimensions
